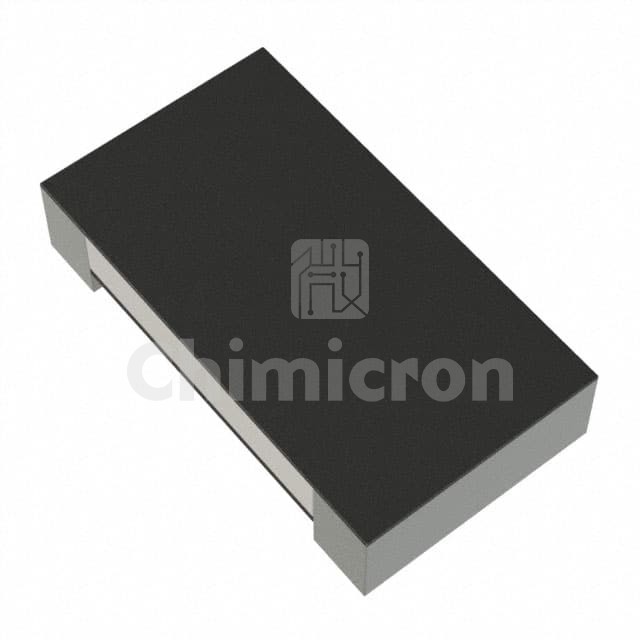

PA0402-R-070RL
PA0402-R-070RL

Manufacturer: Yageo

Description: RES 0 OHM JUMPER 1/16W 0402
Category : Resistors
Family: Chip Resistors-Surface Mount
Series: PA
In Stock:441650
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PA0402-R-070RL Yageo at chimicron.com. We have 441650 pieces of PA0402-R-070RL in stock available now. Submit an inquiry for PA0402-R-070RL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPA
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Resistance0 Ohms
ToleranceJumper
Power (Watts)0.063W, 1/16W
CompositionMetal Element
FeaturesCurrent Sense, Moisture Resistant
Temperature Coefficient±150ppm/°C
Operating Temperature-55°C ~ 125°C
Package / Case0402 (1005 Metric)
Supplier Device Package0402
Ratings-
Size / Dimension0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max)0.016" (0.40mm)
Number of Terminations2
Failure Rate-
