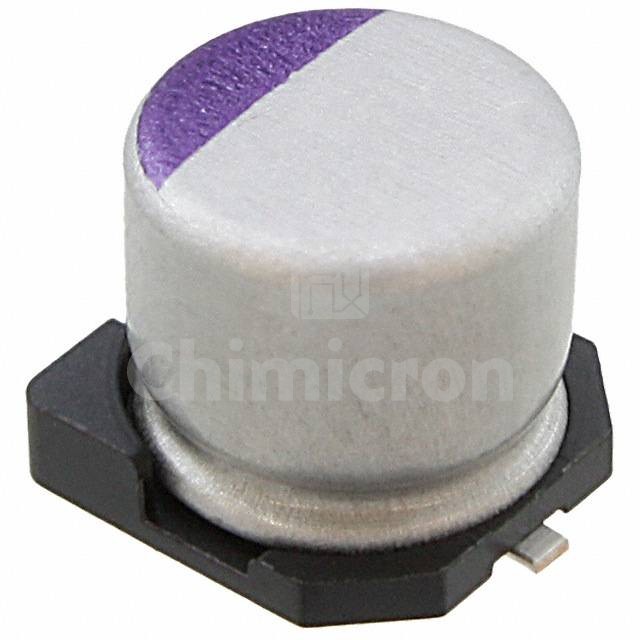

20SVPF120M
Manufacturer: Panasonic
Description: CAP ALUM POLY 120UF 20% 20V SMD
Category : Capacitors
Family: Aluminum - Polymer Capacitors
Series: OS-CON™, SVPF
In Stock:630
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 20SVPF120M Panasonic at chimicron.com. We have 630 pieces of 20SVPF120M in stock available now. Submit an inquiry for 20SVPF120M or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOS-CON™, SVPF
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypePolymer
Capacitance120 µF
Tolerance±20%
Voltage - Rated20 V
ESR (Equivalent Series Resistance)25mOhm
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency160 mA @ 120 Hz
Ripple Current @ High Frequency3.2 A @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.236" (6.00mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
