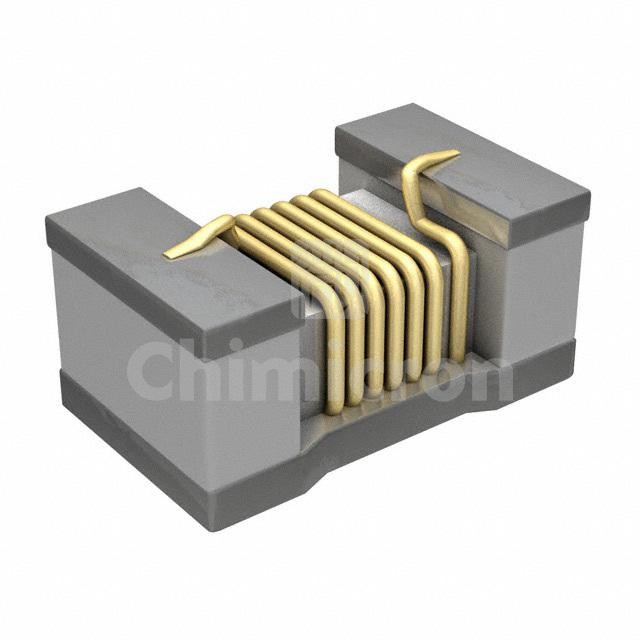

LQW15AN56NH00D
Manufacturer: TOKO / Murata
Description: FIXED IND 56NH 200MA 1.17 OHM
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: LQW15
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LQW15AN56NH00D TOKO / Murata at chimicron.com. We have 1000 pieces of LQW15AN56NH00D in stock available now. Submit an inquiry for LQW15AN56NH00D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesLQW15
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - CoreNon-Magnetic
Inductance56 nH
Tolerance±3%
Current Rating (Amps)200 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)1.17Ohm Max
Q @ Freq20 @ 200MHz
Frequency - Self Resonant2.8GHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100 MHz
Features-
Mounting TypeSurface Mount
Package / Case0402 (1005 Metric)
Supplier Device Package-
Size / Dimension0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)0.024" (0.60mm)
