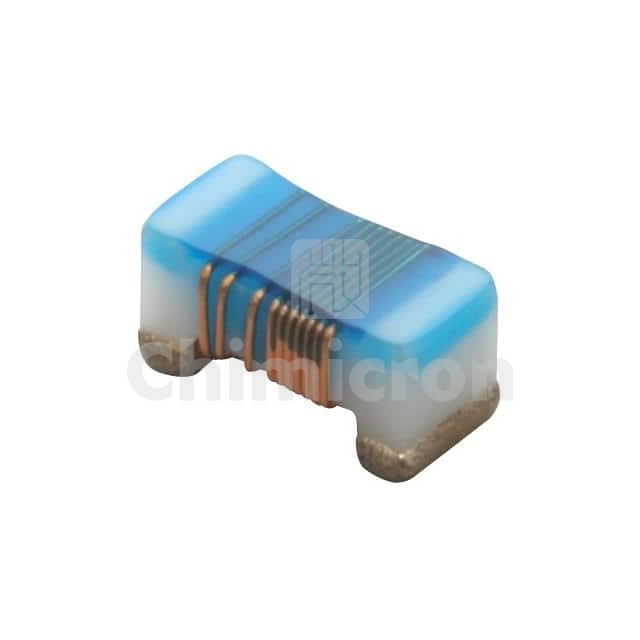

LQW18AN56NG80D
Manufacturer: TOKO / Murata
Description: FIXED IND 56NH 770MA 260 MOHM
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: LQW18
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the LQW18AN56NG80D TOKO / Murata at chimicron.com. We have 500000 pieces of LQW18AN56NG80D in stock available now. Submit an inquiry for LQW18AN56NG80D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesLQW18
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - Core-
Inductance56 nH
Tolerance±2%
Current Rating (Amps)770 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)260mOhm Max
Q @ Freq38 @ 200MHz
Frequency - Self Resonant2.6GHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100 MHz
Features-
Mounting TypeSurface Mount
Package / Case0603 (1608 Metric)
Supplier Device Package0603 (1608 Metric)
Size / Dimension0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)0.039" (1.00mm)
