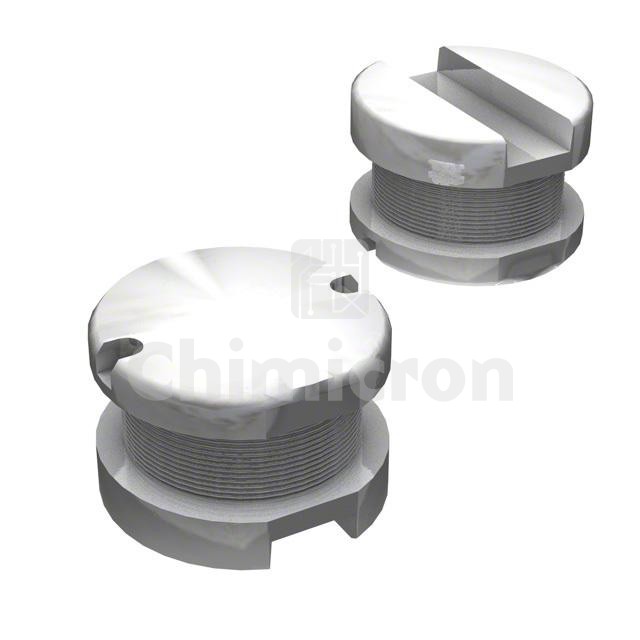

SDR0805-561KL
Manufacturer: J.W. Miller / Bourns
Description: FIXED IND 560UH 300MA 2.5OHM SMD
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: SDR0805
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SDR0805-561KL J.W. Miller / Bourns at chimicron.com. We have 100000 pieces of SDR0805-561KL in stock available now. Submit an inquiry for SDR0805-561KL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSDR0805
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance560 µH
Tolerance±10%
Current Rating (Amps)300 mA
Current - Saturation (Isat)460mA
ShieldingUnshielded
DC Resistance (DCR)2.5Ohm Max
Q @ Freq30 @ 796kHz
Frequency - Self Resonant4MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1 kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max)0.209" (5.30mm)
