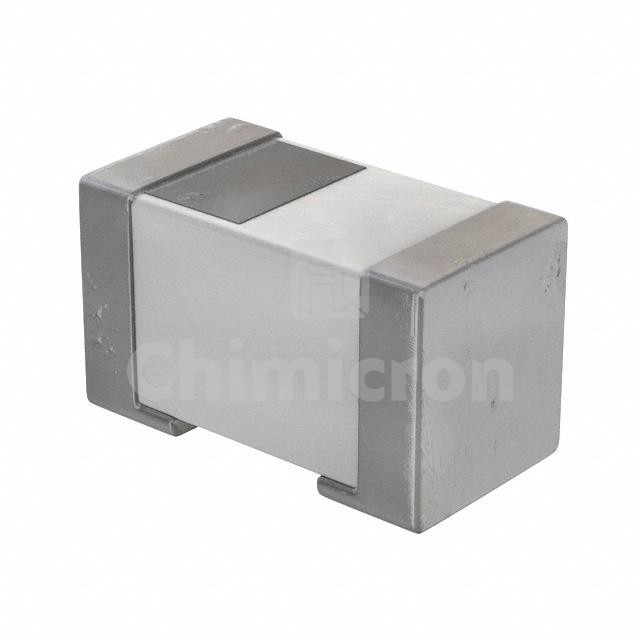

MHQ1005P22NGTD25
Manufacturer: TDK Corporation
Description: FIXED IND 22NH 230MA 1.1 OHM SMD
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: MHQ-P
In Stock:21945
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MHQ1005P22NGTD25 TDK Corporation at chimicron.com. We have 21945 pieces of MHQ1005P22NGTD25 in stock available now. Submit an inquiry for MHQ1005P22NGTD25 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMHQ-P
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeMultilayer
Material - CoreCeramic, Non-Magnetic
Inductance22 nH
Tolerance±2%
Current Rating (Amps)230 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)1.1Ohm Max
Q @ Freq20 @ 250MHz
Frequency - Self Resonant2.1GHz
RatingsAEC-Q200
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100 MHz
Features-
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device Package1006 (0402)
Size / Dimension0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max)0.024" (0.60mm)
