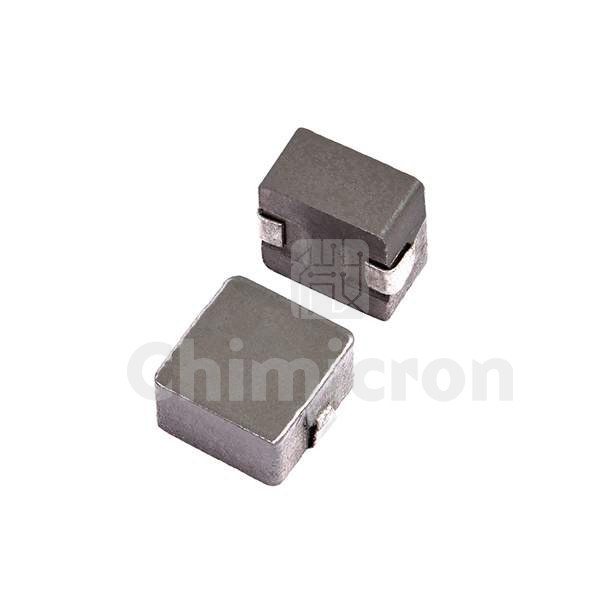

HCM0503-2R2-R
Manufacturer: PowerStor (Eaton)
Description: FIXED IND 2.2UH 6.8A 25 MOHM SMD
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: HCM0503
In Stock:209271
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCM0503-2R2-R PowerStor (Eaton) at chimicron.com. We have 209271 pieces of HCM0503-2R2-R in stock available now. Submit an inquiry for HCM0503-2R2-R or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHCM0503
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - CoreIron Powder
Inductance2.2 µH
Tolerance±20%
Current Rating (Amps)6.8 A
Current - Saturation (Isat)6.5A
ShieldingShielded
DC Resistance (DCR)25mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100 kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max)0.118" (3.00mm)
