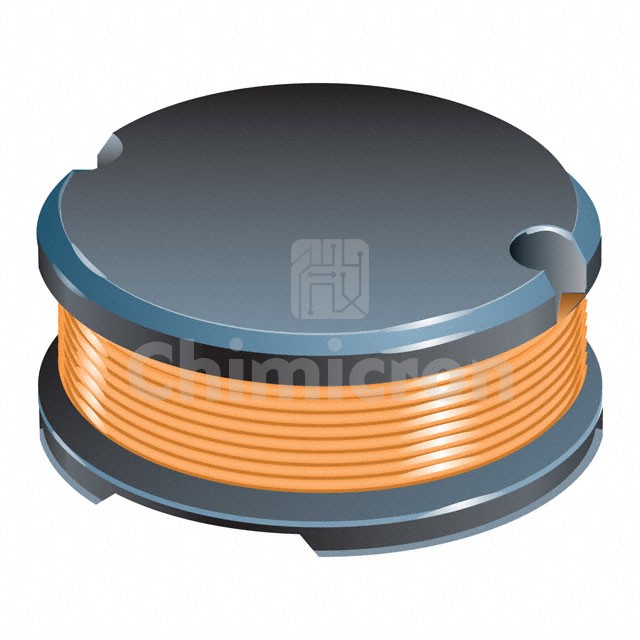

SDR1307A-220M
Manufacturer: J.W. Miller / Bourns
Description: FIXED IND 22UH 3.6A 47 MOHM SMD
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: SDR1307A
In Stock:45000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SDR1307A-220M J.W. Miller / Bourns at chimicron.com. We have 45000 pieces of SDR1307A-220M in stock available now. Submit an inquiry for SDR1307A-220M or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSDR1307A
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22 µH
Tolerance±20%
Current Rating (Amps)3.6 A
Current - Saturation (Isat)6.5A
ShieldingUnshielded
DC Resistance (DCR)47mOhm Max
Q @ Freq40 @ 2.52MHz
Frequency - Self Resonant15MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100 kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.512" Dia (13.00mm)
Height - Seated (Max)0.287" (7.30mm)
