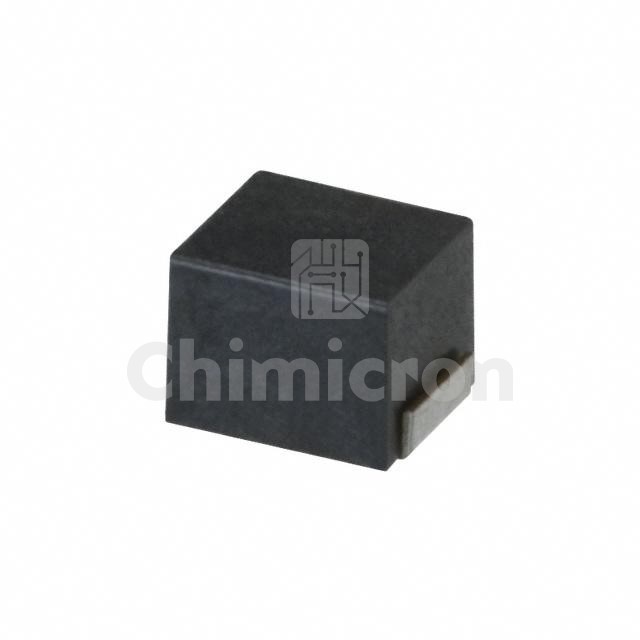

NLV25T-100J-PF
Manufacturer: TDK Corporation
Description: FIXED IND 10UH 155MA 3.5 OHM SMD
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: NLV-PF
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NLV25T-100J-PF TDK Corporation at chimicron.com. We have 10500 pieces of NLV25T-100J-PF in stock available now. Submit an inquiry for NLV25T-100J-PF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNLV-PF
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
TypeWirewound
Material - CoreFerrite
Inductance10 µH
Tolerance±5%
Current Rating (Amps)155 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)3.5Ohm Max
Q @ Freq25 @ 2.52MHz
Frequency - Self Resonant33MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test2.52 MHz
Features-
Mounting TypeSurface Mount
Package / Case1008 (2520 Metric)
Supplier Device Package1008 (2520 Metric)
Size / Dimension0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)0.075" (1.90mm)
