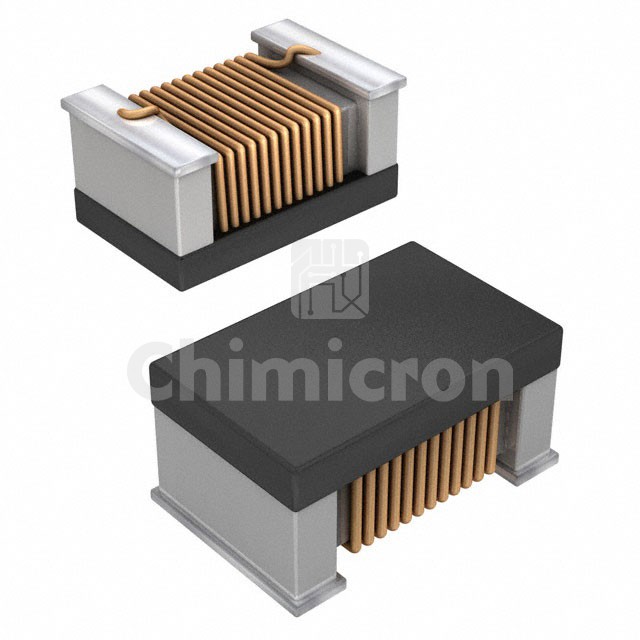

IMC0805ER1R0J01
Manufacturer: Vishay / Dale
Description: FIXED IND 1UH 180MA 2.13 OHM SMD
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: IMC-0805-01
In Stock:30000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IMC0805ER1R0J01 Vishay / Dale at chimicron.com. We have 30000 pieces of IMC0805ER1R0J01 in stock available now. Submit an inquiry for IMC0805ER1R0J01 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesIMC-0805-01
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1 µH
Tolerance±5%
Current Rating (Amps)180 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)2.13Ohm Max
Q @ Freq35 @ 50MHz
Frequency - Self Resonant200MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test25.2 MHz
Features-
Mounting TypeSurface Mount
Package / Case0805 (2012 Metric)
Supplier Device Package0805 (2012 Metric)
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.055" (1.40mm)
