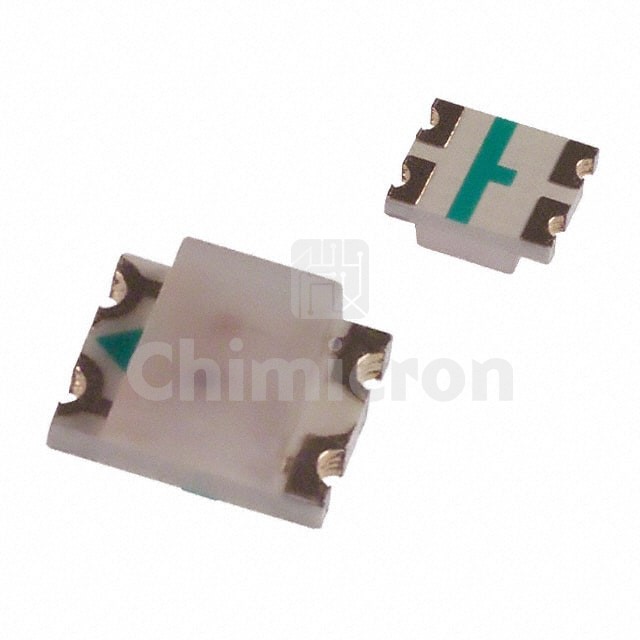

HSMF-C118
Manufacturer: Broadcom
Description: LED RGB DIFFUSED CHIP SMD
Category : Optoelectronics
Family: LED Indication - Discrete
Series: -
In Stock:520
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HSMF-C118 Broadcom at chimicron.com. We have 520 pieces of HSMF-C118 in stock available now. Submit an inquiry for HSMF-C118 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
ColorRed, Green, Blue (RGB)
ConfigurationCommon Anode
Lens ColorWhite
Lens TransparencyDiffused
Millicandela Rating90mcd Red, 120mcd Green, 40mcd Blue
Lens StyleRectangle with Flat Top
Lens Size2.00mm x 2.70mm
Voltage - Forward (Vf) (Typ)1.9V Red, 3.5V Green, 3.5V Blue
Current - Test20mA Red, 20mA Green, 20mA Blue
Viewing Angle135° Red, 130° Green, 125° Blue
Mounting TypeSurface Mount
Wavelength - Dominant626nm Red, 525nm Green, 470nm Blue
Wavelength - Peak637nm Red, 523nm Green, 468nm Blue
Features-
Package / Case1210 (3225 Metric)
Supplier Device PackageChip LED
Size / Dimension3.20mm L x 2.70mm W
Height (Max)1.10mm
