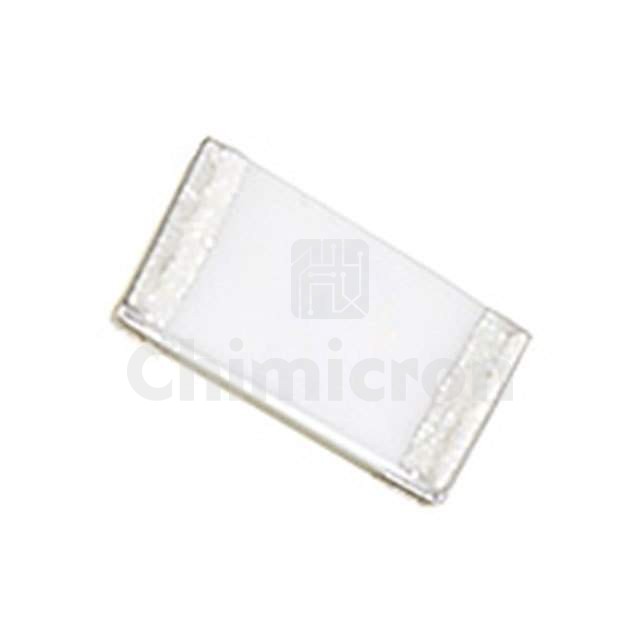

0685H9100-01
0685H9100-01

Manufacturer: Bel Fuse, Inc.

Description: FUSE BOARD MNT 10A 125VAC 32VDC
Category : Circuit Protection Devices
Family: Fuses
Series: C1H
In Stock:3000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 0685H9100-01 Bel Fuse, Inc. at chimicron.com. We have 3000 pieces of 0685H9100-01 in stock available now. Submit an inquiry for 0685H9100-01 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesC1H
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Mounting TypeSurface Mount
Fuse TypeBoard Mount (Cartridge Style Excluded)
Current Rating (Amps)10 A
Voltage Rating - AC125 V
Voltage Rating - DC32 V
Response TimeFast Blow
Package / Case1206 (3216 Metric)
Breaking Capacity @ Rated Voltage150A
Melting I²t5.9
Approval AgencyAEC-Q200, cURus
Operating Temperature-55°C ~ 125°C
Color-
Size / Dimension0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)
