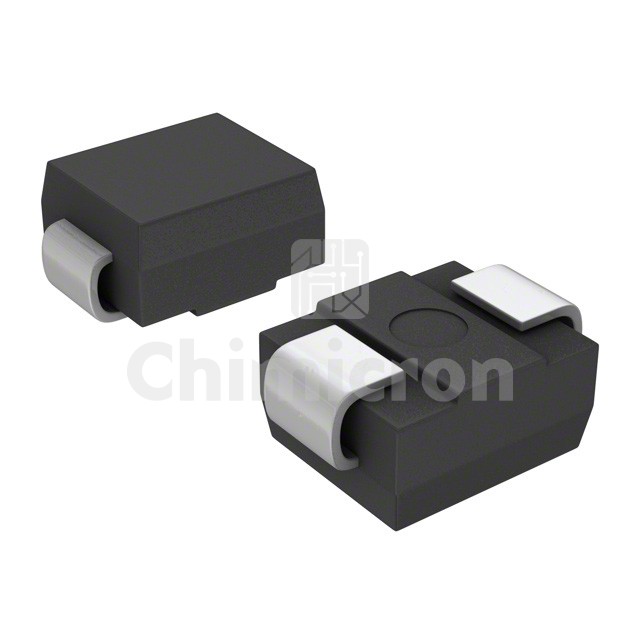

SMBJ36CAHE3_A/H
SMBJ36CAHE3_A/H

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE DO214AA
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101, TransZorb®
In Stock:12306
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SMBJ36CAHE3_A/H Vishay General Semiconductor – Diodes Division at chimicron.com. We have 12306 pieces of SMBJ36CAHE3_A/H in stock available now. Submit an inquiry for SMBJ36CAHE3_A/H or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TransZorb®
PackageTape & Reel (TR)
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)36V
Voltage - Breakdown (Min)40V
Voltage - Clamping (Max) @ Ipp58.1V
Current - Peak Pulse (10/1000µs)10.3A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageDO-214AA (SMBJ)
