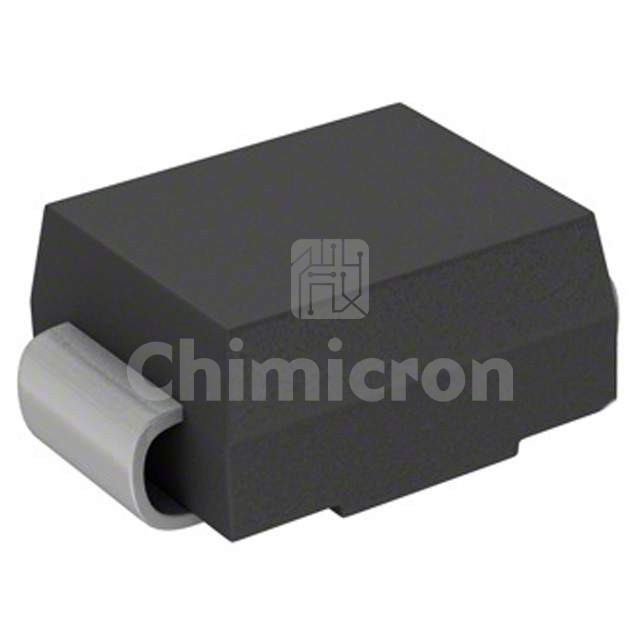

SMAT70A-13-F
SMAT70A-13-F

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: TVS DIODE 70V 100V SMA
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: -
In Stock:500000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SMAT70A-13-F Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 500000 pieces of SMAT70A-13-F in stock available now. Submit an inquiry for SMAT70A-13-F or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)70V
Voltage - Breakdown (Min)77.8V
Voltage - Clamping (Max) @ Ipp100V
Current - Peak Pulse (10/1000µs)3.5A
Power - Peak Pulse400W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency140pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageSMA
