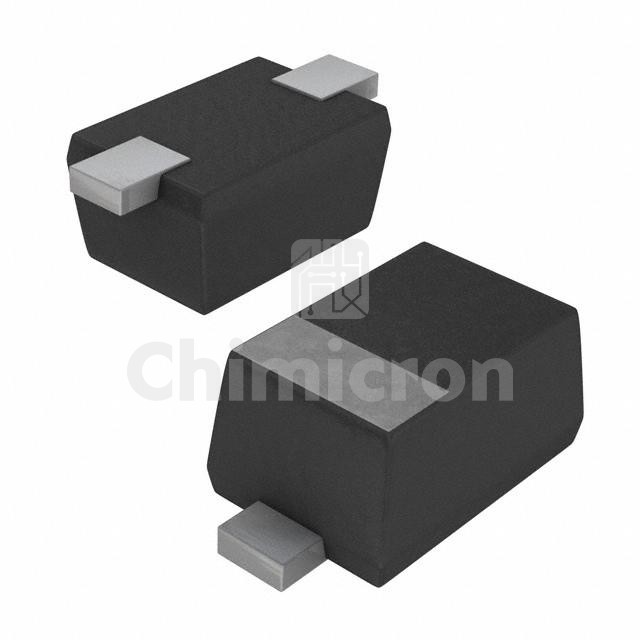

VESD01C1-02VHG3-08
Manufacturer: Vishay General Semiconductor – Diodes Division
Description: ESD PROTECTION DIODE SOD-523
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101
In Stock:1305466
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VESD01C1-02VHG3-08 Vishay General Semiconductor – Diodes Division at chimicron.com. We have 1305466 pieces of VESD01C1-02VHG3-08 in stock available now. Submit an inquiry for VESD01C1-02VHG3-08 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)1V (Max)
Voltage - Breakdown (Min)2.5V
Voltage - Clamping (Max) @ Ipp6.9V
Current - Peak Pulse (10/1000µs)14.6A (8/20µs)
Power - Peak Pulse100W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency192pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
Related Parts for VESD01C1-02VHG3-08
Vishay General Semiconductor – Diodes Division
SMCJ5.0A-E3/9ATTVS DIODE 5V 9.2V DO214AB
In Stock: 437094
