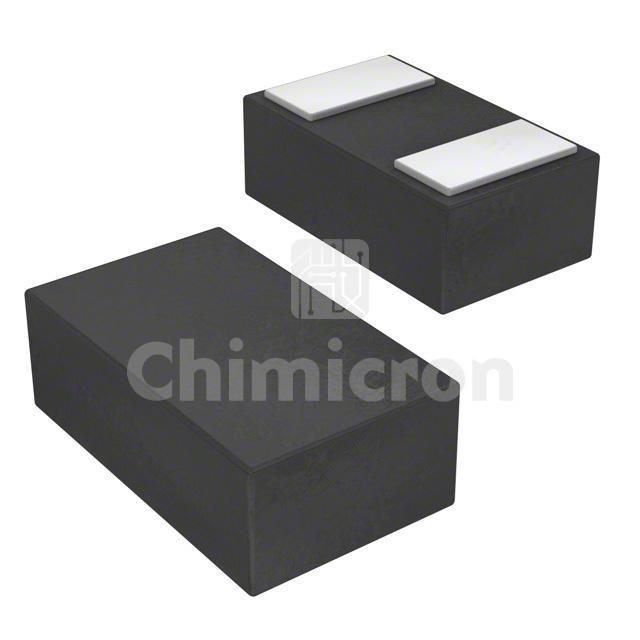

TPD1E01B04DPLR
Manufacturer: Texas
Description: TVS DIODE 3.6V 15V 2X2SON
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: -
In Stock:93332
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPD1E01B04DPLR Texas at chimicron.com. We have 93332 pieces of TPD1E01B04DPLR in stock available now. Submit an inquiry for TPD1E01B04DPLR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)3.6V (Max)
Voltage - Breakdown (Min)6.4V (Typ)
Voltage - Clamping (Max) @ Ipp15V (Typ)
Current - Peak Pulse (10/1000µs)2.5A (8/20µs)
Power - Peak Pulse27W
Power Line ProtectionNo
ApplicationsHDMI
Capacitance @ Frequency0.18pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case0201 (0603 Metric)
Supplier Device Package2-X2SON (0.6x0.3)
