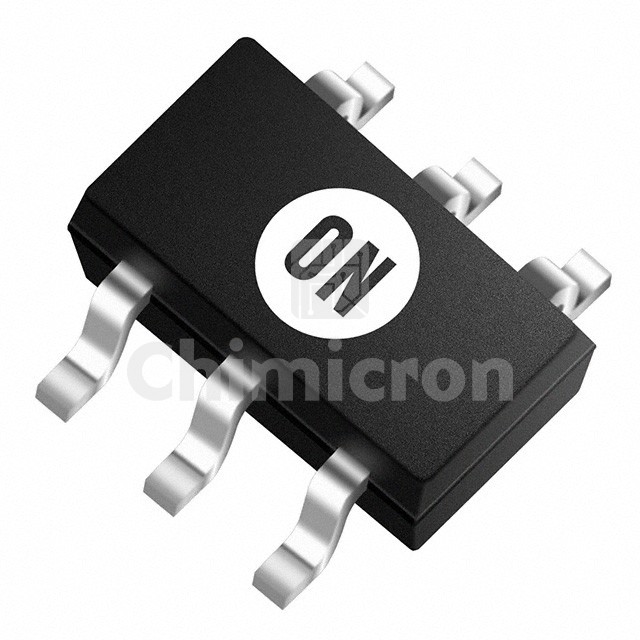

NUP2301MW6T1G
NUP2301MW6T1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TVS DIODE 70V SC88/SC70-6/SOT363
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101
In Stock:6300
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NUP2301MW6T1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 6300 pieces of NUP2301MW6T1G in stock available now. Submit an inquiry for NUP2301MW6T1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeSteering (Rail to Rail)
Unidirectional Channels2
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)70V
Voltage - Breakdown (Min)70V
Voltage - Clamping (Max) @ Ipp-
Current - Peak Pulse (10/1000µs)-
Power - Peak Pulse-
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency1.6pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-88/SC70-6/SOT-363
