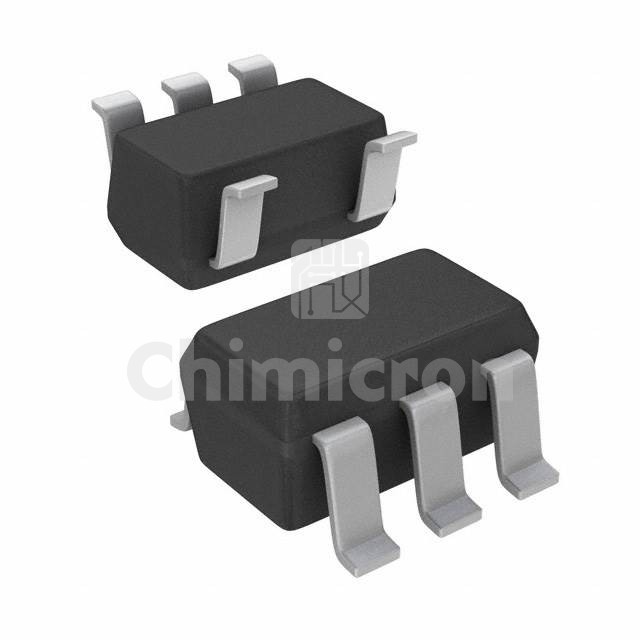

ESDS314DBVR
Manufacturer: Texas
Description: FAMILY OF UNI-DIRECTIONAL SURGE
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: -
In Stock:42693
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ESDS314DBVR Texas at chimicron.com. We have 42693 pieces of ESDS314DBVR in stock available now. Submit an inquiry for ESDS314DBVR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels4
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)3.6V (Max)
Voltage - Breakdown (Min)4.5V
Voltage - Clamping (Max) @ Ipp6.5V (Typ)
Current - Peak Pulse (10/1000µs)25A (8/20µs)
Power - Peak Pulse170W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency4.5pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
