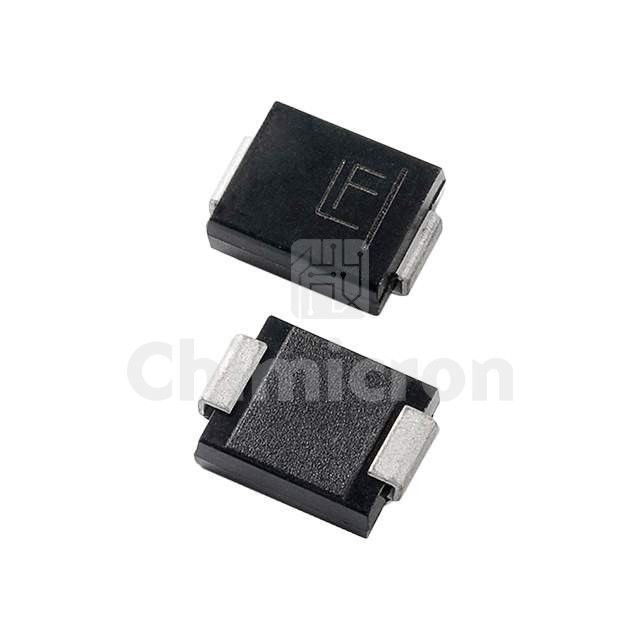

TPSMD22A
Manufacturer: Wickmann / Littelfuse
Description: TVS DIODE 22V 35.5V DO214AB
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101, TPSMD
In Stock:55000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPSMD22A Wickmann / Littelfuse at chimicron.com. We have 55000 pieces of TPSMD22A in stock available now. Submit an inquiry for TPSMD22A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TPSMD
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)22V
Voltage - Breakdown (Min)24.4V
Voltage - Clamping (Max) @ Ipp35.5V
Current - Peak Pulse (10/1000µs)84.5A
Power - Peak Pulse3000W (3kW)
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageDO-214AB (SMCJ)
