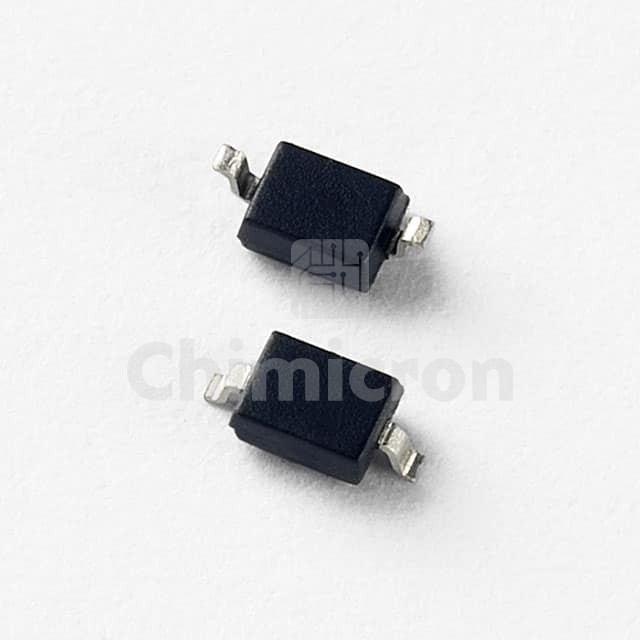

AQ3522-01FTG
Manufacturer: Wickmann / Littelfuse
Description: TVS DIODE 15.5V 2.5A 22KV SOD323
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101, AQ3522, SPA®
In Stock:55650
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AQ3522-01FTG Wickmann / Littelfuse at chimicron.com. We have 55650 pieces of AQ3522-01FTG in stock available now. Submit an inquiry for AQ3522-01FTG or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, AQ3522, SPA®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)5V (Max)
Voltage - Breakdown (Min)8.5V
Voltage - Clamping (Max) @ Ipp18V
Current - Peak Pulse (10/1000µs)2.5A (8/20µs)
Power - Peak Pulse-
Power Line ProtectionNo
ApplicationsAutomotive, HDMI, USB
Capacitance @ Frequency0.15pF @ 3GHz
Operating Temperature-40°C ~ 150°C (TA)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
