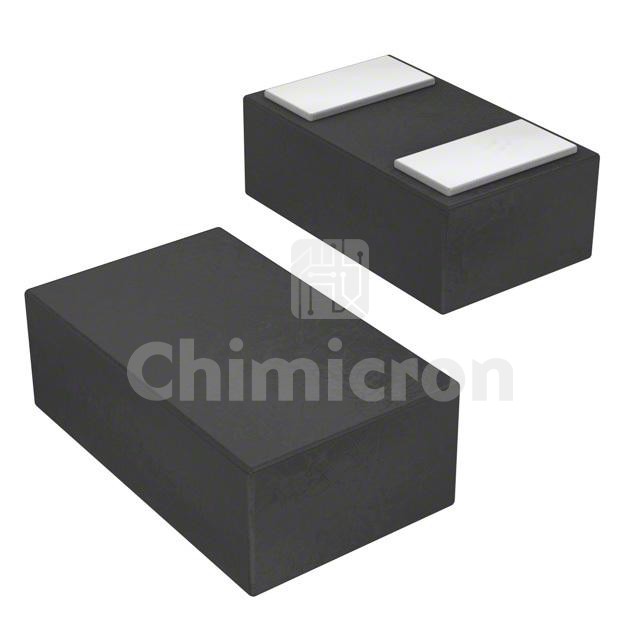

TPD1E04U04DPYT
TPD1E04U04DPYT

Manufacturer: Texas

Description: TVS DIODE 3.6V 8.9V 2X1SON
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: -
In Stock:67200
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPD1E04U04DPYT Texas at chimicron.com. We have 67200 pieces of TPD1E04U04DPYT in stock available now. Submit an inquiry for TPD1E04U04DPYT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeSteering (Rail to Rail)
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)3.6V (Max)
Voltage - Breakdown (Min)4.5V
Voltage - Clamping (Max) @ Ipp8.9V
Current - Peak Pulse (10/1000µs)2.5A (8/20µs)
Power - Peak Pulse19W
Power Line ProtectionYes
ApplicationsHDMI
Capacitance @ Frequency0.5pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case0402 (1006 Metric)
Supplier Device Package2-X1SON (1x.60)
