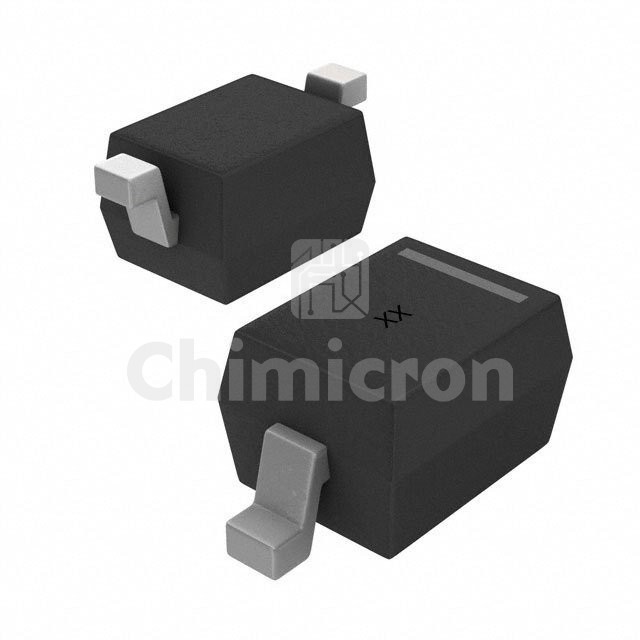

CDSOD323-T24L
CDSOD323-T24L

Manufacturer: J.W. Miller / Bourns

Description: TVS DIODE 24V 56V SOD323
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: -
In Stock:260000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CDSOD323-T24L J.W. Miller / Bourns at chimicron.com. We have 260000 pieces of CDSOD323-T24L in stock available now. Submit an inquiry for CDSOD323-T24L or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)24V
Voltage - Breakdown (Min)26.7V
Voltage - Clamping (Max) @ Ipp56V (Typ)
Current - Peak Pulse (10/1000µs)6A (8/20µs)
Power - Peak Pulse350W
Power Line ProtectionNo
ApplicationsHDMI, USB OTG
Capacitance @ Frequency1pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
