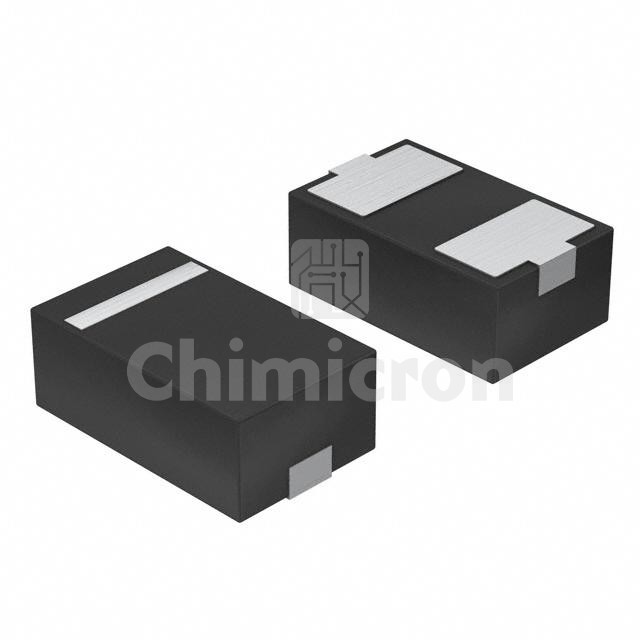

VCUT0714A-HD1-GS08
VCUT0714A-HD1-GS08

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE 7V/14V 17V/30V LLP1006
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: -
In Stock:111300
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the VCUT0714A-HD1-GS08 Vishay General Semiconductor – Diodes Division at chimicron.com. We have 111300 pieces of VCUT0714A-HD1-GS08 in stock available now. Submit an inquiry for VCUT0714A-HD1-GS08 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels-
Bidirectional Channels1
Voltage - Reverse Standoff (Typ)7V, 14V
Voltage - Breakdown (Min)7.3V, 14.5V
Voltage - Clamping (Max) @ Ipp17V, 30V
Current - Peak Pulse (10/1000µs)5A, 2A (8/20µs)
Power - Peak Pulse54W, 63W
Power Line ProtectionNo
ApplicationsRS-485
Capacitance @ Frequency8pF @ 1MHz
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-882
Supplier Device PackageLLP1006-2L
