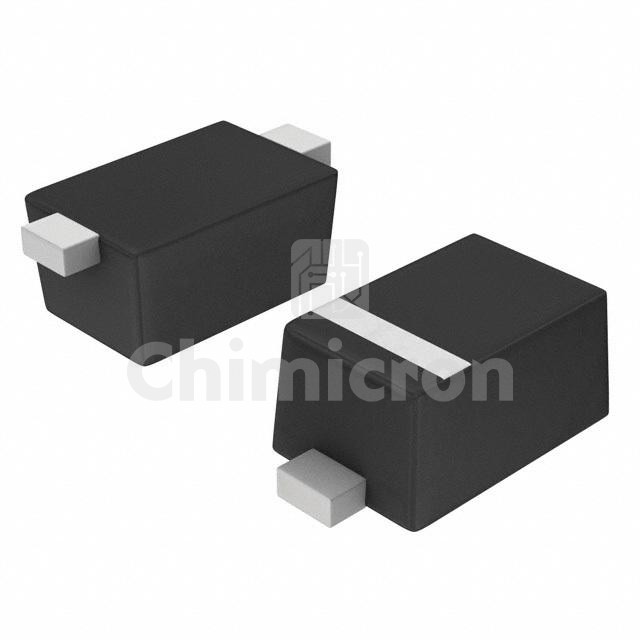

SZESD5Z12T1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: TVS DIODE 12V 25V SOD523
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101
In Stock:4550000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SZESD5Z12T1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 4550000 pieces of SZESD5Z12T1G in stock available now. Submit an inquiry for SZESD5Z12T1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)12V (Max)
Voltage - Breakdown (Min)14.1V
Voltage - Clamping (Max) @ Ipp25V
Current - Peak Pulse (10/1000µs)9.6A (8/20µs)
Power - Peak Pulse240W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency55pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSOD-523
