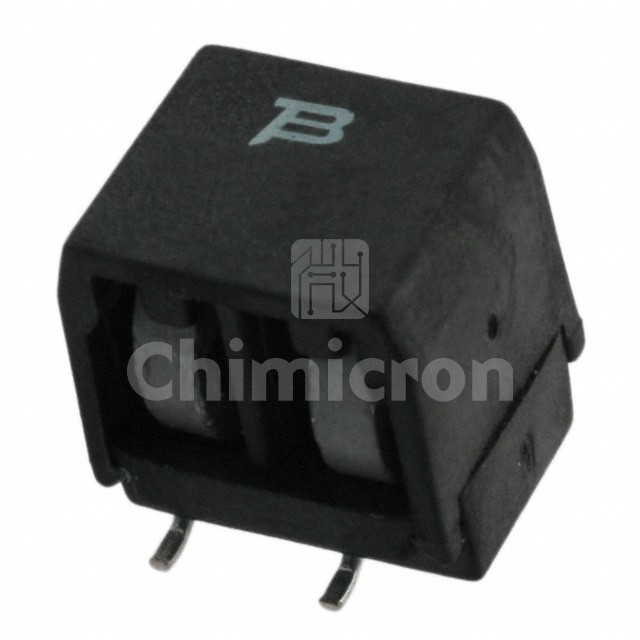

CMF-SDP10A-2
Manufacturer: J.W. Miller / Bourns
Description: PTC RESET FUSE 230V 150MA 4SMD
Category : Circuit Protection Devices
Family: PTC Resettable Fuses
Series: CMF-SDP
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CMF-SDP10A-2 J.W. Miller / Bourns at chimicron.com. We have 2100 pieces of CMF-SDP10A-2 in stock available now. Submit an inquiry for CMF-SDP10A-2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCMF-SDP
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeCeramic
Voltage - Max230V (250V Int)
Current - Max1 A
Current - Hold (Ih) (Max)150 mA
Current - Trip (It)360 mA
Time to Trip3.8 s
Resistance - Initial (Ri) (Min)-
Resistance - Post Trip (R1) (Max)-
Resistance - 25°C (Typ)10 Ohms
Operating Temperature-40°C ~ 125°C
Ratings-
Mounting TypeSurface Mount
Package / Case4-SMD Cube
Size / Dimension0.344" L x 0.283" W (8.75mm x 7.20mm)
Height - Seated (Max)-
Thickness (Max)0.402" (10.20mm)
Lead Spacing-
