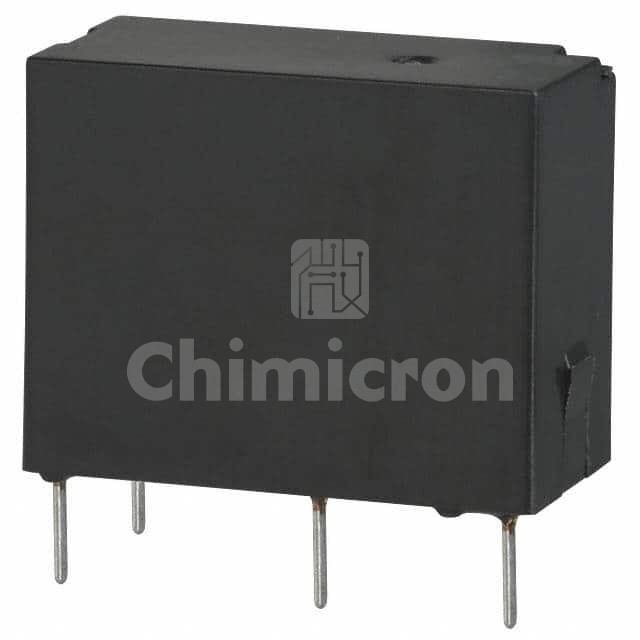

JQ1P-24V-F
JQ1P-24V-F

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPDT 10A 24V
Category : Relays
Family: Power Relays, Over 2 Amps
Series: JQ
In Stock:10500
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the JQ1P-24V-F Panasonic at chimicron.com. We have 10500 pieces of JQ1P-24V-F in stock available now. Submit an inquiry for JQ1P-24V-F or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesJQ
PackageBulk
Part StatusObsolete
Mounting TypeThrough Hole
Coil Voltage24VDC
Contact FormSPDT (1 Form C)
Contact Rating (Current)10 A
Switching Voltage250VAC, 110VDC - Max
Coil Current16.7 mA
Coil TypeNon Latching
Features-
Termination StylePC Pin
Seal Rating-
Coil InsulationClass E
Must Operate Voltage19.2 VDC
Must Release Voltage1.2 VDC
Operate Time20 ms
Release Time10 ms
Operating Temperature-40°C ~ 70°C
Contact MaterialSilver Tin Oxide (AgSnO)
Relay TypeGeneral Purpose
