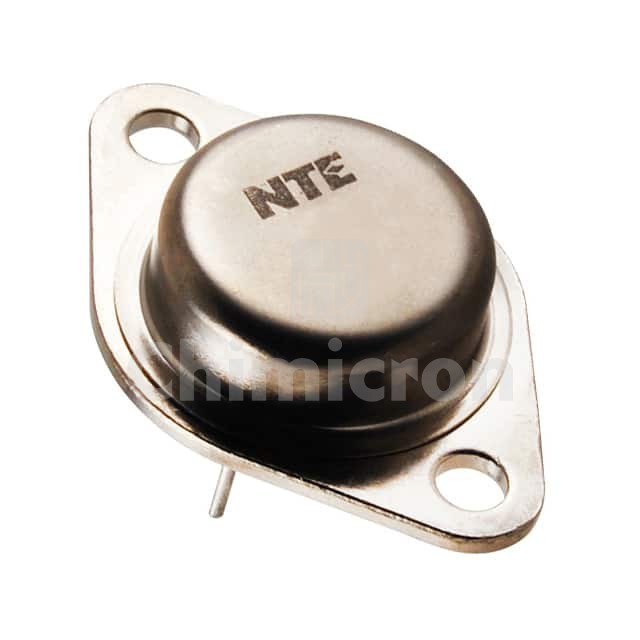

2N5301
Manufacturer: NTE Electronics, Inc.
Description: TRANS NPN 40V 30A TO3
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:3000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N5301 NTE Electronics, Inc. at chimicron.com. We have 3000 pieces of 2N5301 in stock available now. Submit an inquiry for 2N5301 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBag
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)30 A
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic3V @ 6A, 30A
Current - Collector Cutoff (Max)5mA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 10A, 2V
Power - Max200 W
Frequency - Transition2MHz
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
