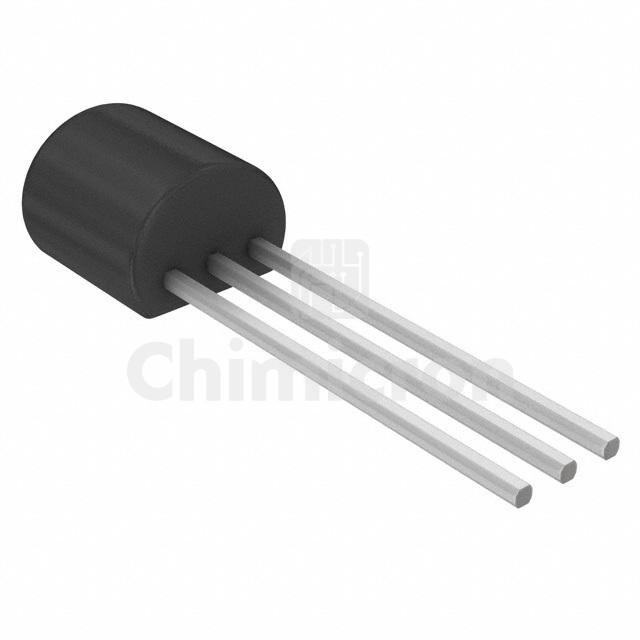

ZTX692BSTZ
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: TRANS NPN 70V 1A E-LINE
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:402000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZTX692BSTZ Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 402000 pieces of ZTX692BSTZ in stock available now. Submit an inquiry for ZTX692BSTZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Box (TB)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)70 V
Vce Saturation (Max) @ Ib, Ic500mV @ 10mA, 1A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce400 @ 500mA, 2V
Power - Max1 W
Frequency - Transition150MHz
Operating Temperature-55°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseE-Line-3, Formed Leads
Supplier Device PackageE-Line (TO-92 compatible)
