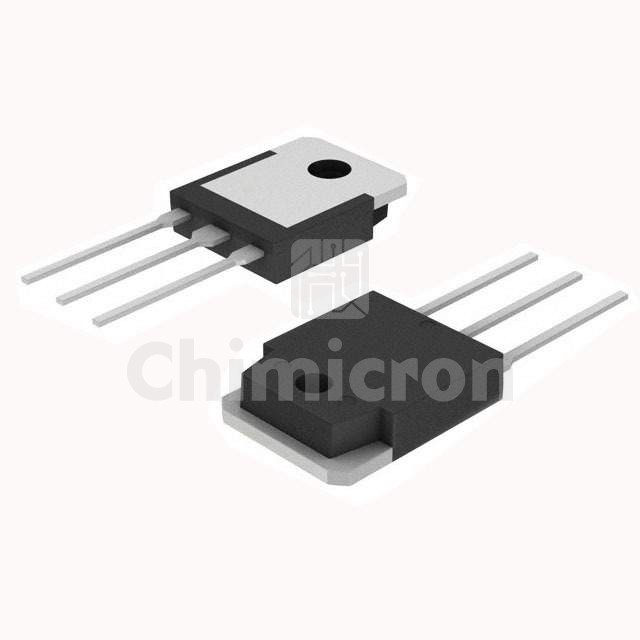

2SD2560
Manufacturer: Sanken Electric Co., Ltd.
Description: TRANS NPN DARL 150V 15A TO-3P
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2SD2560 Sanken Electric Co., Ltd. at chimicron.com. We have 5000 pieces of 2SD2560 in stock available now. Submit an inquiry for 2SD2560 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)15 A
Voltage - Collector Emitter Breakdown (Max)150 V
Vce Saturation (Max) @ Ib, Ic2.5V @ 10mA, 10A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce5000 @ 10A, 4V
Power - Max130 W
Frequency - Transition70MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
