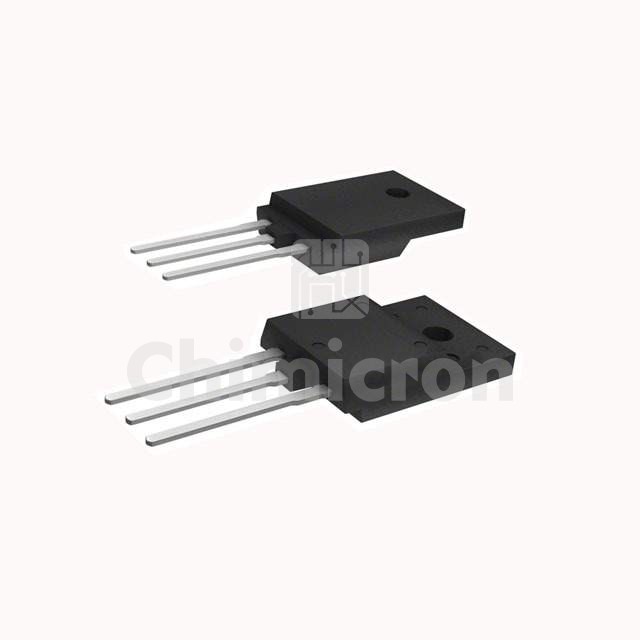

2SA1746
Manufacturer: Sanken Electric Co., Ltd.
Description: TRANS PNP 50V 12A TO3PF
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:3000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2SA1746 Sanken Electric Co., Ltd. at chimicron.com. We have 3000 pieces of 2SA1746 in stock available now. Submit an inquiry for 2SA1746 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)12 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic500mV @ 80mA, 5A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 5A, 1V
Power - Max60 W
Frequency - Transition25MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3 Full Pack
Supplier Device PackageTO-3PF
