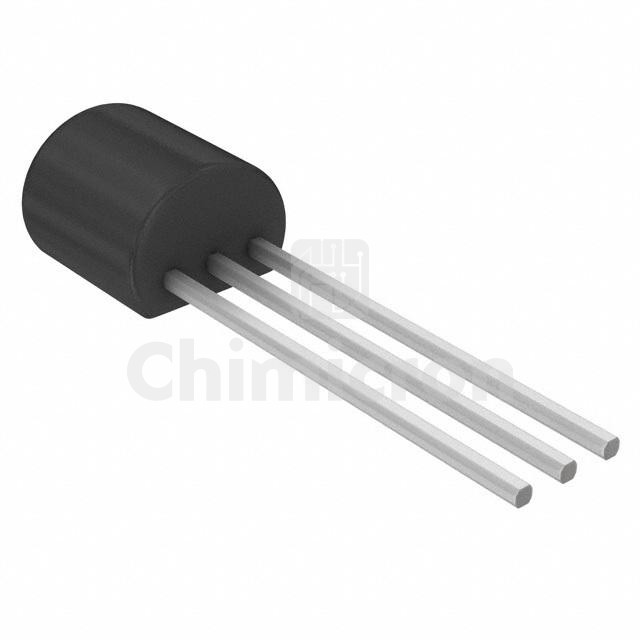

ZTX705
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: TRANS PNP DARL 120V 1A E-LINE
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:93621
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZTX705 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 93621 pieces of ZTX705 in stock available now. Submit an inquiry for ZTX705 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Transistor TypePNP - Darlington
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic2.5V @ 2mA, 2A
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce3000 @ 1A, 5V
Power - Max1 W
Frequency - Transition160MHz
Operating Temperature-55°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseE-Line-3
Supplier Device PackageE-Line (TO-92 compatible)
