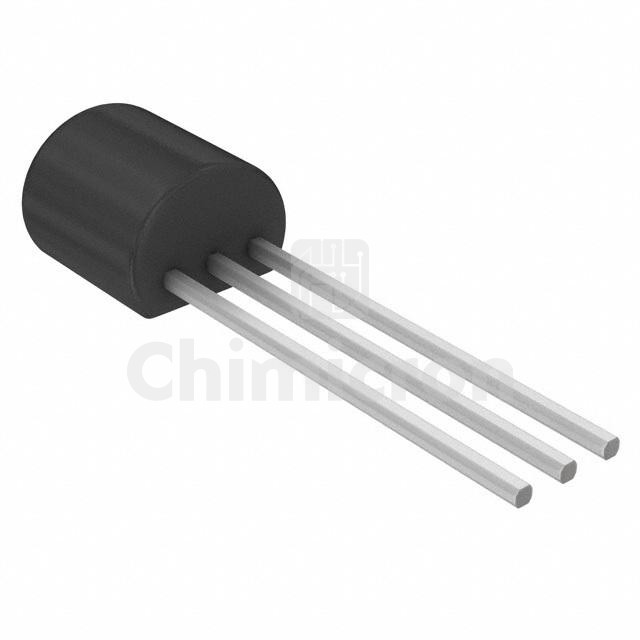

ZTX694BSTZ
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: TRANS NPN 120V 0.5A E-LINE
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:8054
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZTX694BSTZ Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 8054 pieces of ZTX694BSTZ in stock available now. Submit an inquiry for ZTX694BSTZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Box (TB)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic500mV @ 5mA, 400mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce400 @ 200mA, 2V
Power - Max1 W
Frequency - Transition130MHz
Operating Temperature-55°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseE-Line-3, Formed Leads
Supplier Device PackageE-Line (TO-92 compatible)
