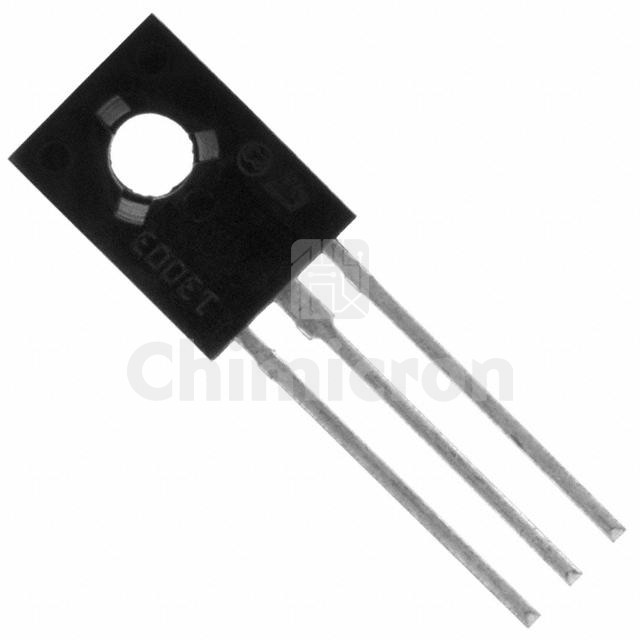

BD680
Manufacturer: STMicroelectronics
Description: TRANS PNP DARL 80V 4A SOT-32
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:42000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BD680 STMicroelectronics at chimicron.com. We have 42000 pieces of BD680 in stock available now. Submit an inquiry for BD680 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Transistor TypePNP - Darlington
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic2.5V @ 30mA, 1.5A
Current - Collector Cutoff (Max)500µA
DC Current Gain (hFE) (Min) @ Ic, Vce750 @ 1.5A, 3V
Power - Max40 W
Frequency - Transition-
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageSOT-32-3
