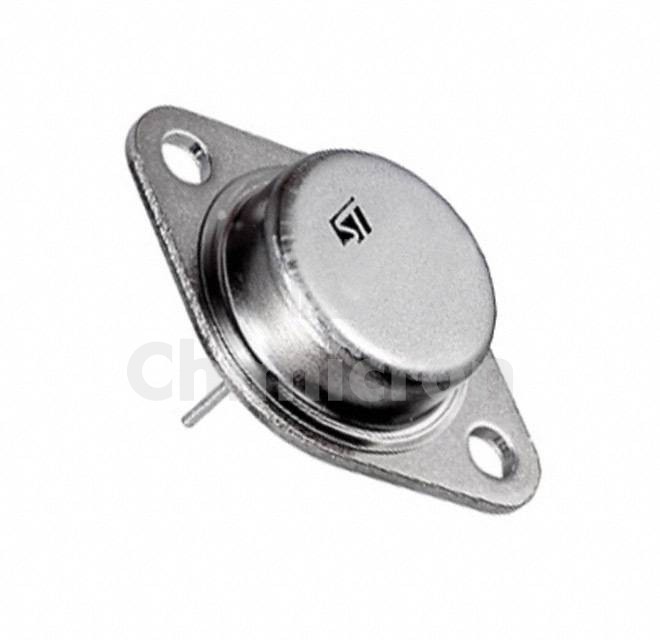

2N6284
2N6284

Manufacturer: NTE Electronics, Inc.

Description: TRANS NPN 100V 20A TO204
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:5000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N6284 NTE Electronics, Inc. at chimicron.com. We have 5000 pieces of 2N6284 in stock available now. Submit an inquiry for 2N6284 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBag
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic2V @ 40mA, 10A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce750 @ 10A, 3V
Power - Max160 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-204 (TO-3)
