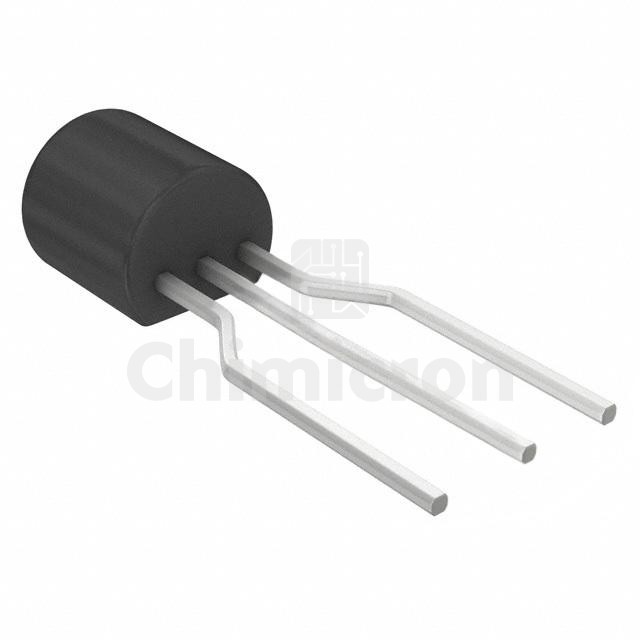

PN2222ATF
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: TRANS NPN 40V 1A TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:1768
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PN2222ATF Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1768 pieces of PN2222ATF in stock available now. Submit an inquiry for PN2222ATF or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic1V @ 50mA, 500mA
Current - Collector Cutoff (Max)10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 10V
Power - Max625 mW
Frequency - Transition300MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device PackageTO-92-3
