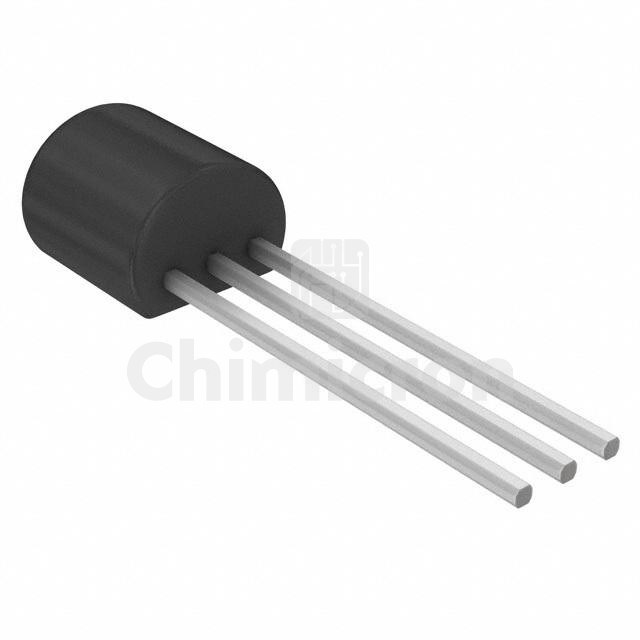

ZTX560
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: TRANS PNP 500V 0.15A E-LINE
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:3000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZTX560 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 3000 pieces of ZTX560 in stock available now. Submit an inquiry for ZTX560 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)150 mA
Voltage - Collector Emitter Breakdown (Max)500 V
Vce Saturation (Max) @ Ib, Ic500mV @ 10mA, 50mA
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 50mA, 10V
Power - Max1 W
Frequency - Transition60MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseE-Line-3
Supplier Device PackageE-Line (TO-92 compatible)
