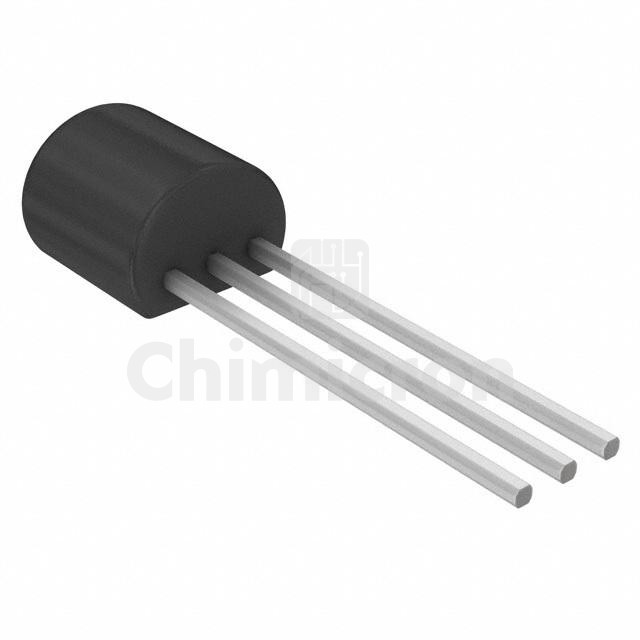

PN2222A
PN2222A

Manufacturer: NTE Electronics, Inc.

Description: TRANS NPN 40V 600MA TO92-3
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:20000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PN2222A NTE Electronics, Inc. at chimicron.com. We have 20000 pieces of PN2222A in stock available now. Submit an inquiry for PN2222A or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBag
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)600 mA
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic1V @ 50mA, 500mA
Current - Collector Cutoff (Max)10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 10V
Power - Max500 mW
Frequency - Transition270MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 (TO-226AA)
Supplier Device PackageTO-92-3
