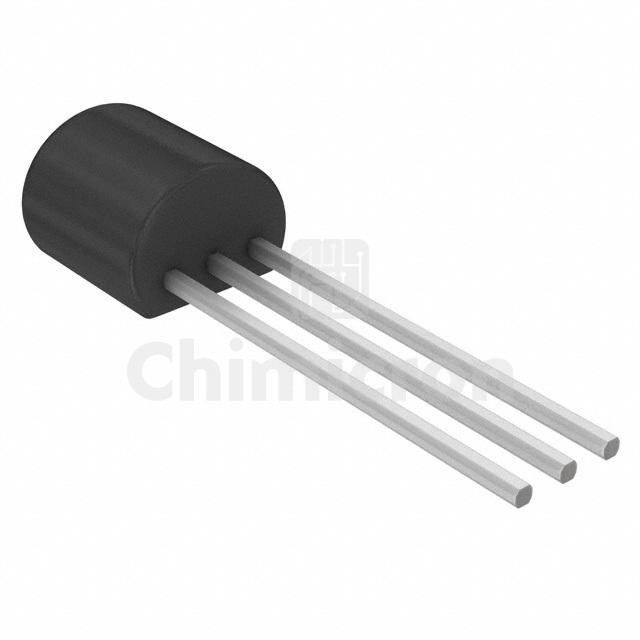

ZTX869STZ
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: TRANS NPN 25V 5A E-LINE
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:163401
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZTX869STZ Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 163401 pieces of ZTX869STZ in stock available now. Submit an inquiry for ZTX869STZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Box (TB)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)25 V
Vce Saturation (Max) @ Ib, Ic220mV @ 100mA, 5A
Current - Collector Cutoff (Max)50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 1A, 1V
Power - Max1.2 W
Frequency - Transition100MHz
Operating Temperature-55°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseE-Line-3
Supplier Device PackageE-Line (TO-92 compatible)
