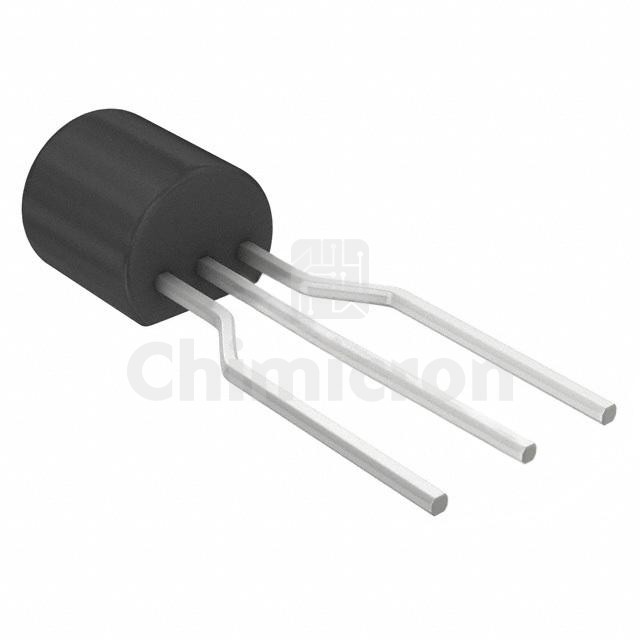

PN2222ATFR
Manufacturer: Rochester Electronics
Description: SMALL SIGNAL BIPOLAR TRANSISTOR,
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:1634742
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PN2222ATFR Rochester Electronics at chimicron.com. We have 1634742 pieces of PN2222ATFR in stock available now. Submit an inquiry for PN2222ATFR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)40 V
Vce Saturation (Max) @ Ib, Ic1V @ 50mA, 500mA
Current - Collector Cutoff (Max)10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 10V
Power - Max625 mW
Frequency - Transition300MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device PackageTO-92-3
