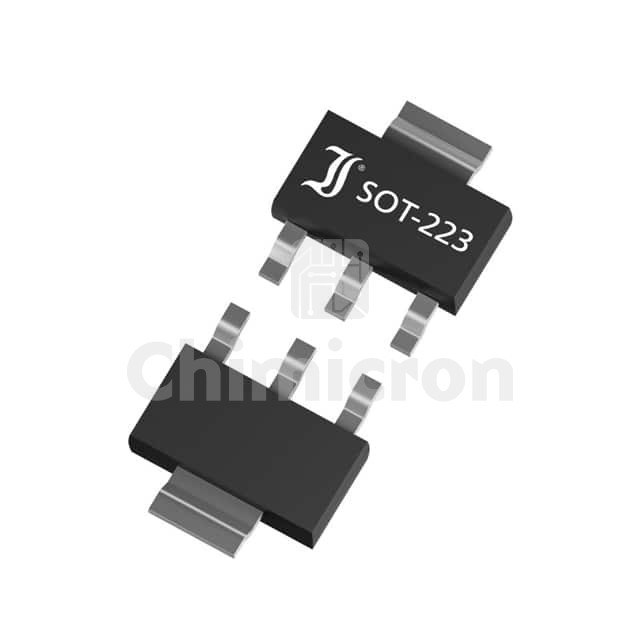

BCP56-10
Manufacturer: Diotec Semiconductor
Description: BJT SOT-223 80V 1000MA
Category : Discrete Semiconductor Products
Family: Transistors - Bipolar (BJT) - Single
Series: -
In Stock:31500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BCP56-10 Diotec Semiconductor at chimicron.com. We have 31500 pieces of BCP56-10 in stock available now. Submit an inquiry for BCP56-10 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce63 @ 150mA, 2V
Power - Max2 W
Frequency - Transition100MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-261-4, TO-261AA
Supplier Device PackageSOT-223
