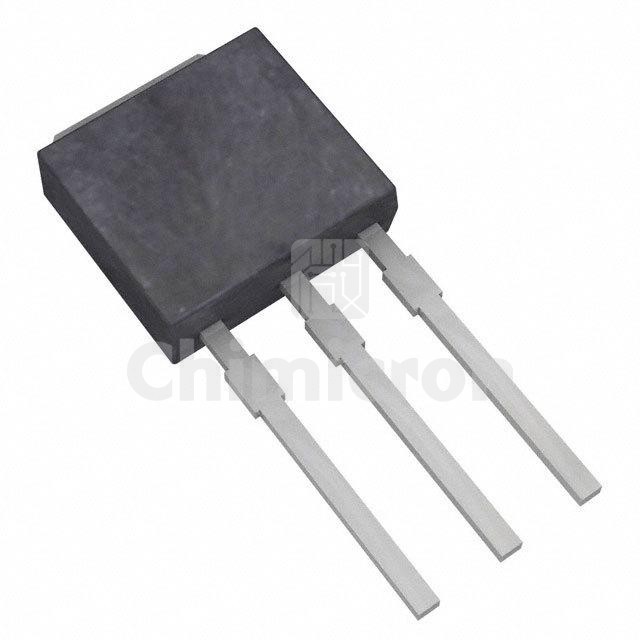

RFD14N05
Manufacturer: Rochester Electronics
Description: MOSFET N-CH 50V 14A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RFD14N05 Rochester Electronics at chimicron.com. We have 2000 pieces of RFD14N05 in stock available now. Submit an inquiry for RFD14N05 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs100mOhm @ 14A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 20 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds570 pF @ 25 V
FET Feature-
Power Dissipation (Max)48W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
