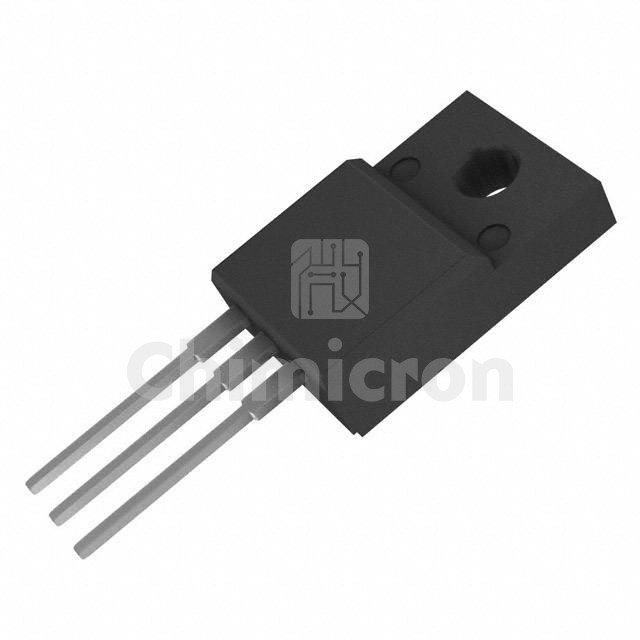

IXFP5N100PM
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 1000V 2.3A TO220
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™, PolarP2™
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFP5N100PM Wickmann / Littelfuse at chimicron.com. We have 20000 pieces of IXFP5N100PM in stock available now. Submit an inquiry for IXFP5N100PM or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™, PolarP2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1000 V
Current - Continuous Drain (Id) @ 25°C2.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.8Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs33.4 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1830 pF @ 25 V
FET Feature-
Power Dissipation (Max)42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220 Isolated Tab
Package / CaseTO-220-3 Full Pack, Isolated Tab
