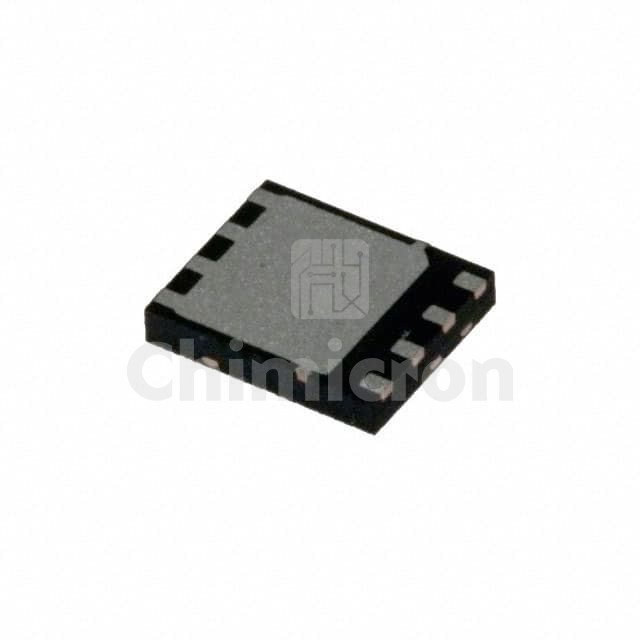

CSD17303Q5
Manufacturer: Texas
Description: MOSFET N-CH 30V 32A/100A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:10500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD17303Q5 Texas at chimicron.com. We have 10500 pieces of CSD17303Q5 in stock available now. Submit an inquiry for CSD17303Q5 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C32A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)3V, 8V
Rds On (Max) @ Id, Vgs2.4mOhm @ 25A, 8V
Vgs(th) (Max) @ Id1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds3420 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (5x6)
Package / Case8-PowerTDFN
