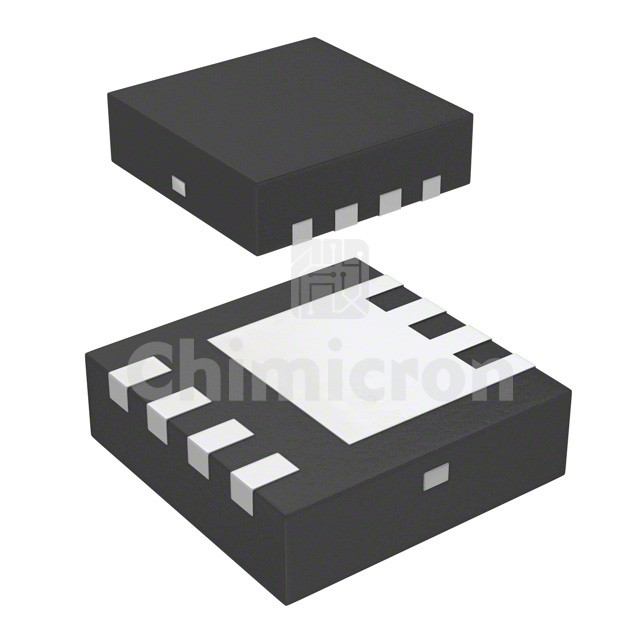

SISS06DN-T1-GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET N-CH 30V 47.6/172.6A PPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchFET® Gen IV
In Stock:5833
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SISS06DN-T1-GE3 Vishay / Siliconix at chimicron.com. We have 5833 pieces of SISS06DN-T1-GE3 in stock available now. Submit an inquiry for SISS06DN-T1-GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchFET® Gen IV
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C47.6A (Ta), 172.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.38mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs77 nC @ 10 V
Vgs (Max)+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds3660 pF @ 15 V
FET Feature-
Power Dissipation (Max)5W (Ta), 65.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 1212-8S (3.3x3.3)
Package / CasePowerPAK® 1212-8S
