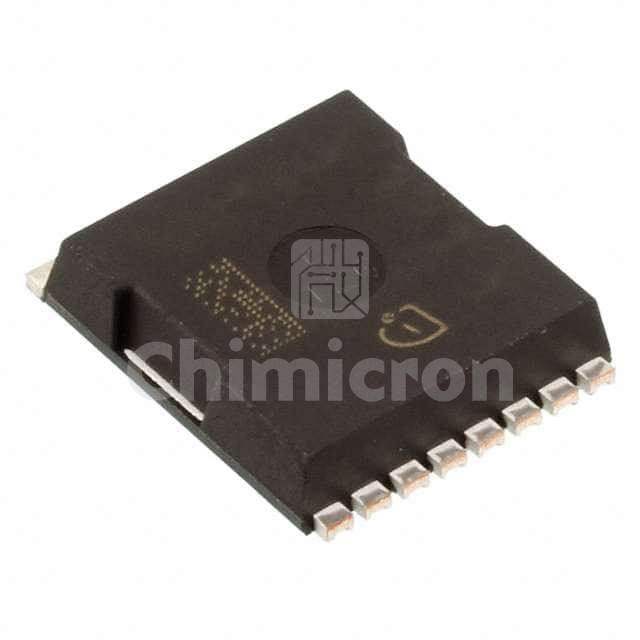

IPT007N06NATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 300A 8HSOF
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:6300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPT007N06NATMA1 IR (Infineon Technologies) at chimicron.com. We have 6300 pieces of IPT007N06NATMA1 in stock available now. Submit an inquiry for IPT007N06NATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs0.75mOhm @ 150A, 10V
Vgs(th) (Max) @ Id3.3V @ 280µA
Gate Charge (Qg) (Max) @ Vgs287 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds16000 pF @ 30 V
FET Feature-
Power Dissipation (Max)375W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOF-8-1
Package / Case8-PowerSFN
