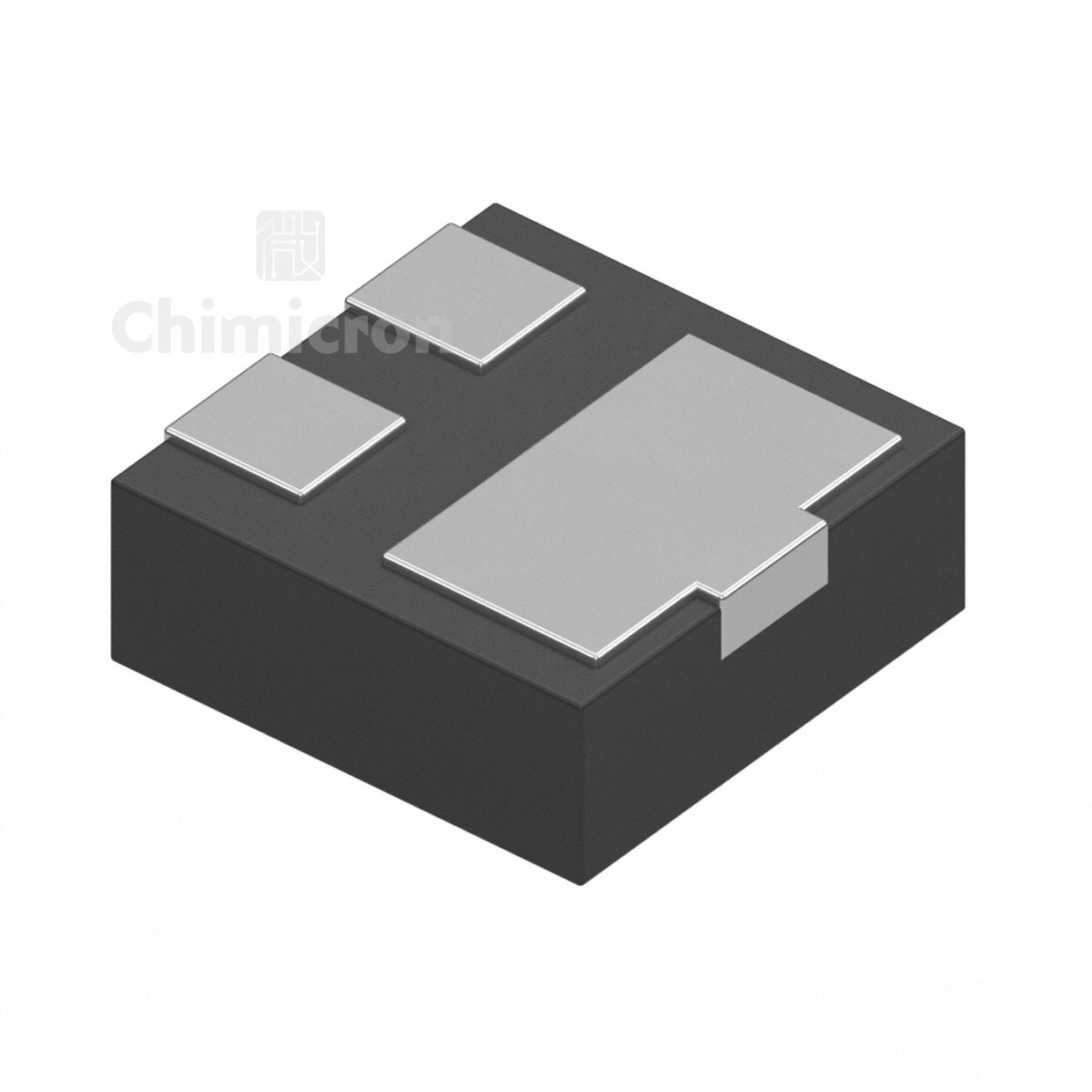

DMN1045UFR4-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 12V 3.2A 3DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:9000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMN1045UFR4-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 9000 pieces of DMN1045UFR4-7 in stock available now. Submit an inquiry for DMN1045UFR4-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs45mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.8 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds375 pF @ 10 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageX2-DFN1010-3
Package / Case3-XFDFN
