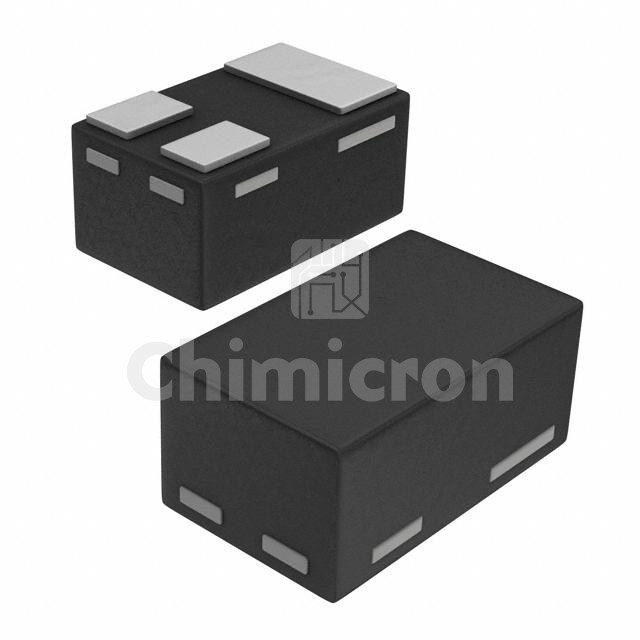

NX138BKMYL
Manufacturer: Nexperia
Description: MOSFET N-CH 60V 380MA DFN1006-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: TrenchMOS™
In Stock:210000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NX138BKMYL Nexperia at chimicron.com. We have 210000 pieces of NX138BKMYL in stock available now. Submit an inquiry for NX138BKMYL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C380mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs2.3Ohm @ 380mA, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds20 pF @ 30 V
FET Feature-
Power Dissipation (Max)380mW (Ta), 2.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006-3
Package / CaseSC-101, SOT-883
