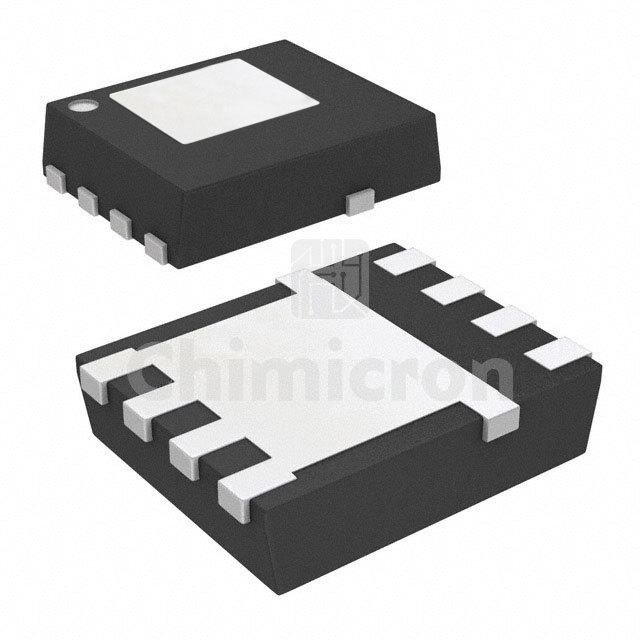

CSD16322Q5C
Manufacturer: Rochester Electronics
Description: MOSFET N-CH 25V 21A/97A 8VSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: NexFET™
In Stock:600000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CSD16322Q5C Rochester Electronics at chimicron.com. We have 600000 pieces of CSD16322Q5C in stock available now. Submit an inquiry for CSD16322Q5C or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNexFET™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C21A (Ta), 97A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs5mOhm @ 20A, 8V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.7 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds1365 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)3.1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-VSON-CLIP (5x6)
Package / Case8-PowerTDFN
