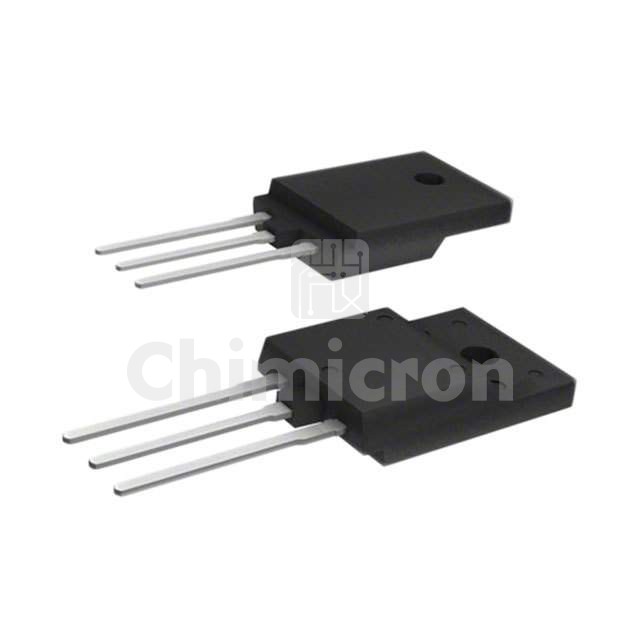

IPA80R1K0CEXKSA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 800V 5.7A TO220-FP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™ CE
In Stock:55371
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPA80R1K0CEXKSA2 IR (Infineon Technologies) at chimicron.com. We have 55371 pieces of IPA80R1K0CEXKSA2 in stock available now. Submit an inquiry for IPA80R1K0CEXKSA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™ CE
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C5.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs950mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs31 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds785 pF @ 100 V
FET Feature-
Power Dissipation (Max)32W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO220-FP
Package / CaseTO-220-3 Full Pack
