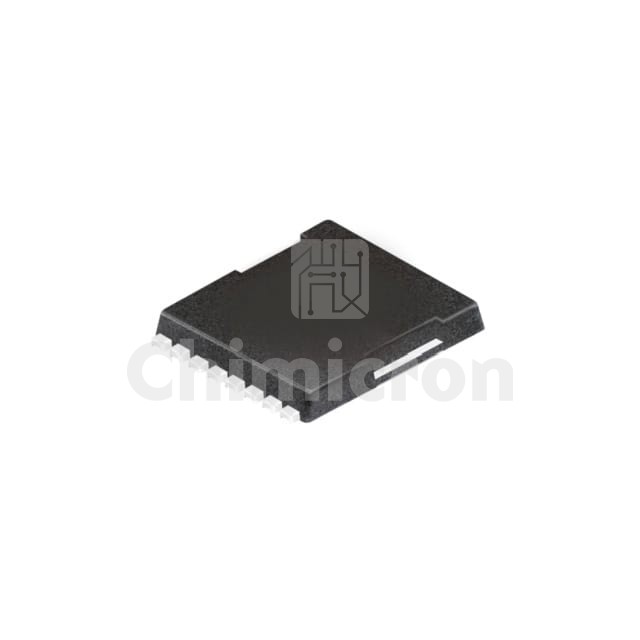

IPT60R040S7XTMA1
IPT60R040S7XTMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 600V 13A 8HSOF
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™S7
In Stock:1869
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPT60R040S7XTMA1 IR (Infineon Technologies) at chimicron.com. We have 1869 pieces of IPT60R040S7XTMA1 in stock available now. Submit an inquiry for IPT60R040S7XTMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™S7
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C13A (Tc)
Drive Voltage (Max Rds On, Min Rds On)12V
Rds On (Max) @ Id, Vgs40mOhm @ 13A, 12V
Vgs(th) (Max) @ Id4.5V @ 790µA
Gate Charge (Qg) (Max) @ Vgs83 nC @ 12 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3127 pF @ 300 V
FET Feature-
Power Dissipation (Max)245W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOF-8-2
Package / Case8-PowerSFN
